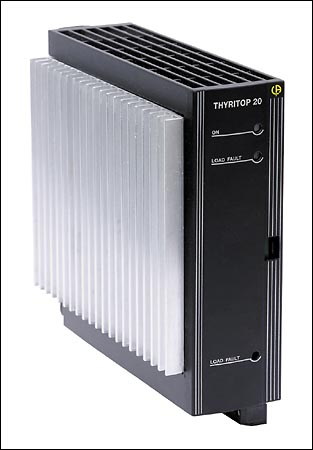

Tyritop 20

UL/CSA approved

Thyristor solid state relays for switching resistive loads from 8A to 280A, in single-phase.
Direct drive by our STATOP temperature controllers.
DIN rail mounting (models 8, 16 and 30A) or in the back of a cabinet.

• Single-phase network: 230V, 400V, 500V
• Operates by wave train (On-Off)
• Control by logic voltage 0…24VDC, digital and dry contact via an optional external bus (Modbus or Profibus)
• Partial load break detection (depending on the model): alarm output by relays and indicator LED
  H1: model without alarm
  HRL1: model with alarm output and indicator LED
• Built-in ultra-rapid fuseTHYRITOP 20 designation
  Example: THYRITOP 20-1S-230-100-H1
  Family: THYRITOP 20-1S
  Voltage: 230V
  Intensity: 100A
  Alarm (HRL1 with – H1 without): without alarm
  Ventilator (F model 280A only): without ventilator

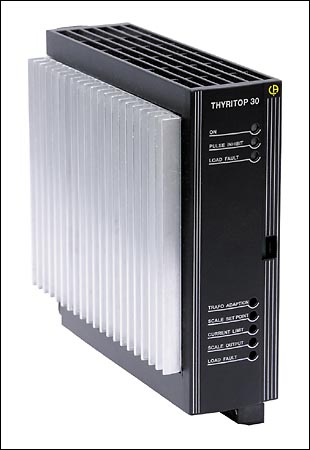

Thyritop 30

UL/CSA approved

Modbus or Profibus digital communication

Thyristor power controllers for switching resistive and inductive loads from 8A to 280A.
Available in single-phase or three-phase with 2-phase cut-off.
DIN rail mounting (models 8, 16, and 30A) or in the back of a cabinet.

• Digital communication via external Modbus or Profibus module (optional)
• Single and three-phase 230V, 400V and 500V networks
• Operates by full wave switching (TAKT), quick full wave switching (QTM – Quick TAKT Mode) and phase angle (VAR mode)
• Analogue, potentiometric, and digital control
• Numerous fonctions for control, limitation, detection, alarms, etc.
• Built-in ultra-rapid fuse

THYRITOP 30 designation
Example: THYRITOP 30-2A-400-280-HFRL1
Family: THYRITOP 30
Phase (1A single – 2A three-phase): three-phase, 2-phase cut-off
Voltage: 400V
Intensity: 280A
Alarm (HRL1 with – H1 without): with alarm
Ventilator (F model 280A only): with ventilator

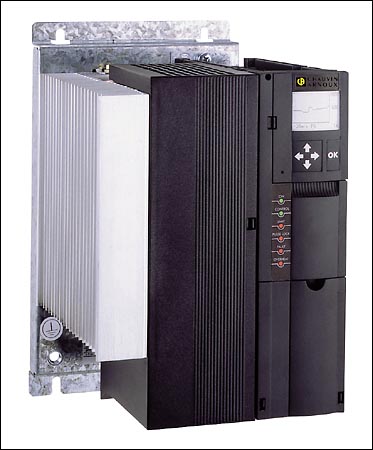

Thyritop 40

Modbus or Profibus digital communication

Thyristor power controllers for switching resistive and inductive loads of 37A to 2900A. 3 versions: single phase (1P), three-phase 2 or 3-phase cut (2P) and (3P).

• Digital communication via Modbus or Profibus board (available as an option)
• Digital display module/programmer, unpluggable and remotable. RS232 communication. Displays curves and values of U, I and P and control set points
• Single and three-phase networks, 230V to 690V
• Functions by wave train, phase angle and mixed
• Analogue, potentiometric and digital local and remote control
• Numerous functions – regulation, limitation, detection, dynamic synchronisation, alarms, etc.
• Thyrotool configuration software, available as an option

THYRITOP 40 designation
Example: THYRITOP 40 2P 400 280 HF

Family: THYRITOP 40
3-phase with 2P cutoff: 2P
Voltage (V): 400
Current (A): 280
With ventilator: HF
