Standard.

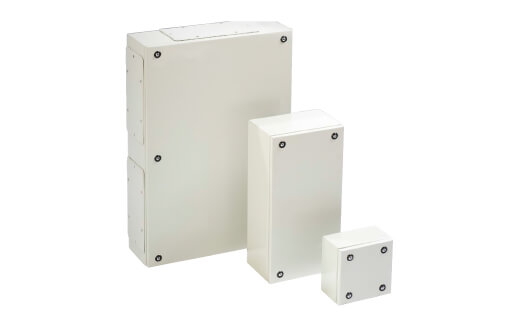

Boxes with plain sides and screw-on cover with depths of 95 mm and 135 mm.
Boxes with cable entry and screw-on cover with a depth of 135 mm.
To order: Special boxes, dimensions, cut-outs, colours, etc.

Cold-rolled steel EN10130+A1, Injected polyurethane sealing gasket.
Coated with hardened RAL 7035 polyester paint, embossed, 80-120 µ, with UV protection.

The body, cover and accessory bag are supplied shrink-wrapped.

Standard IP66 boxes with polyester case and transparent polycarbonate lid.
IP66 boxes with polyester case and opaque polycarbonate lid.
Range: 32-33-34-42-44-63-64-66-84-86 modules.
The 32-34-44-63-64-66 modules admit the high-lid variant.
Set of 10 modular insulation boxes with height and width dimensions that are multiples of one module, 1 module = 90 mm.

Bases manufactured in RAL 7035 grey fibreglass-reinforced polyester.
Transparent lids made of polycarbonate.
Opaque lids manufactured in RAL 7035 grey polycarbonate.
Main characteristics.
Halogen-free, Non-hygroscopic (zero water absorption).
Double insulation, Corrosion-resistant, Alkali-resistant.
Transparent and opaque lids with ultraviolet (UV) protection.

Supplied in a single box per packaging multiples

Standard.

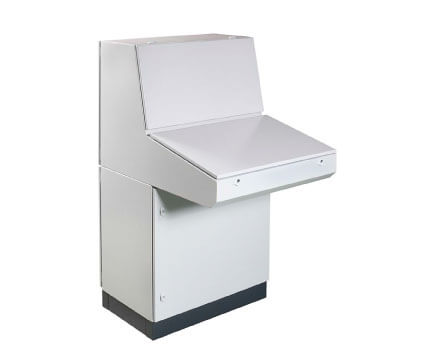

Mixed version: IP55 desks with control and synoptic panels.
Height: 1415 mm.
Width: 800 – 1000 – 1200 – 1600 mm.
Depth: 500/950 mm.
Compact versions.
IP55 desks with control panel.
Height: 965 mm.
Width: 600 – 800 – 1000 – 1200 mm.
Depth: 400/520 mm.
IP55 desks with synoptic panel.
Height: 700 mm.
Width: 800 – 1000 – 1200 – 1600 mm.
Depth: 950 mm.
To order: Special desks, dimensions, cut-outs, colours, etc.

Cold-rolled steel EN10130+A1.
Coated with hardened RAL 7035 polyester paint, embossed 80-120 µ, with UV protection.

Supplied on pallets, with honeycomb cardboard corner protectors and shrink-wrap film.
The plate can be supplied in separate packaging on request.
Bag of assembly accessories included

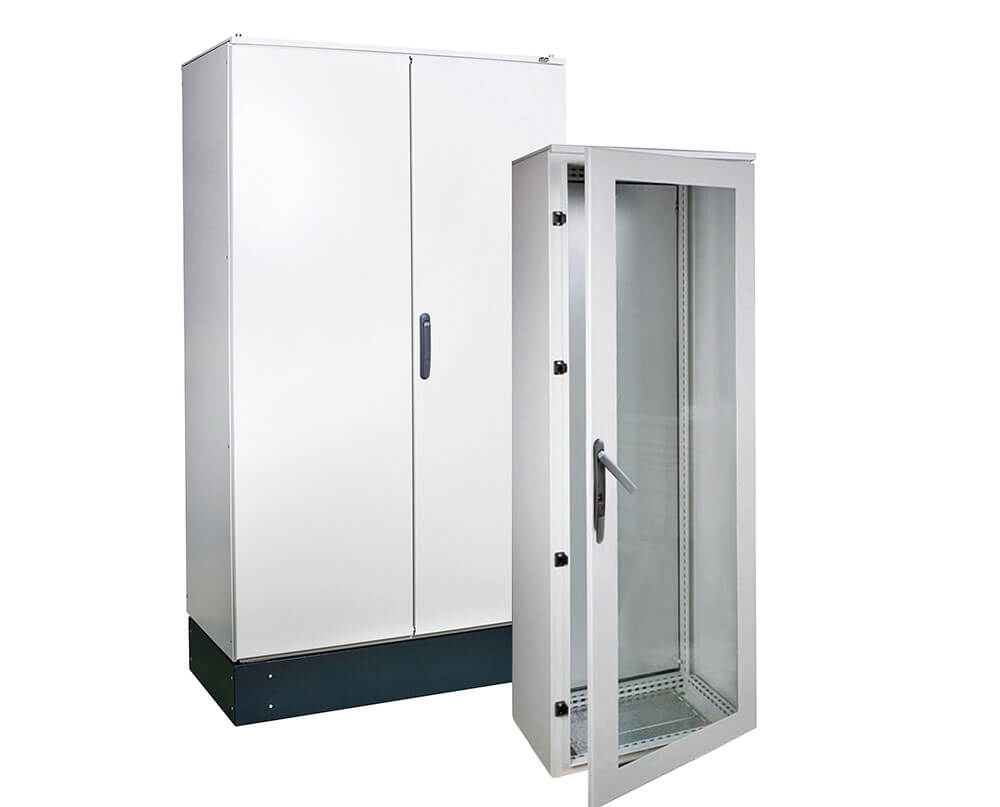

Standard.
Opaque door cabinets with mounting plate.
Single door up to width of 1000 mm.
Double door as of width of 1000 mm.
Height: 1650 – 1800 – 2000.
Width: 600 – 800 – 1000 – 1200.
Depth: 400 – 500.
To order: Special cabinets, dimensions, cut-outs, colours, etc.

Cold-rolled steel EN10130+A1.
Coated with hardened RAL 7035 embossed polyester paint, 80-120 µ, with UV protection.

Supplied on pallets, protected with honeycomb cardboard corner pieces and shrink-wrap film.
The plate is supplied assembled, Key, Assembly instructions

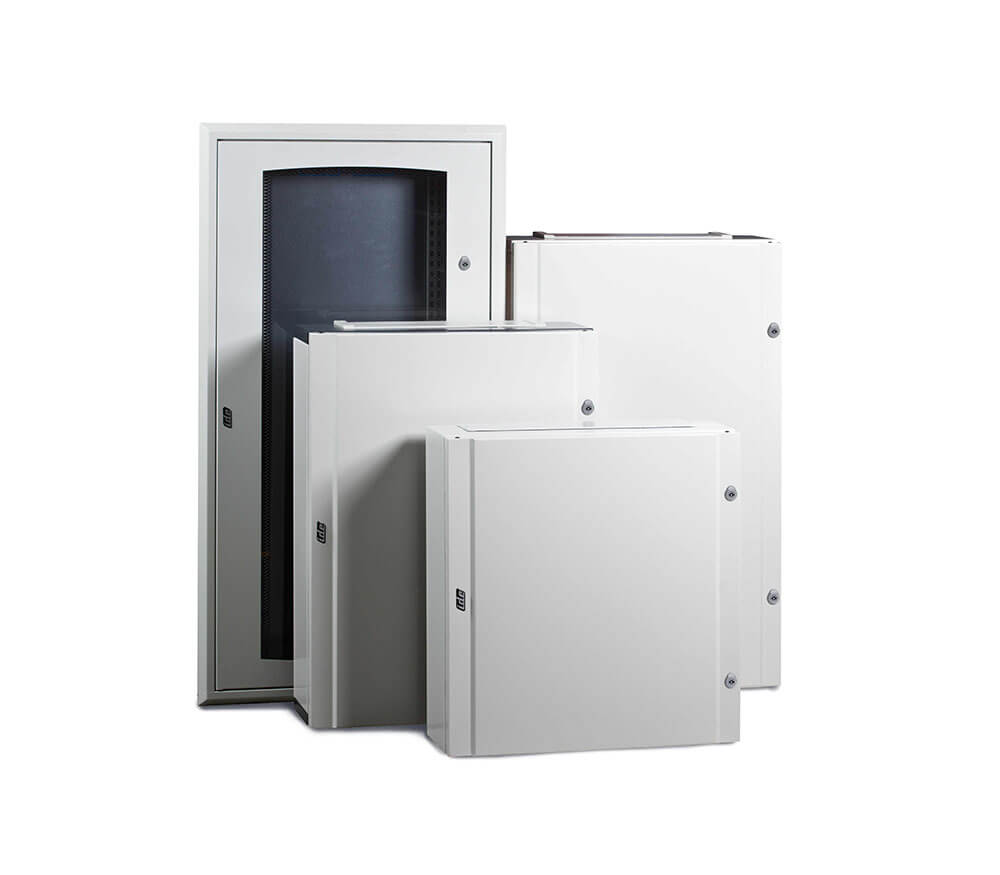

Standard.
IP30 combinable surface cabinets without door.
IP40 combinable surface cabinets with opaque or transparent door.
IP40 compact surface cabinets with opaque or transparent door.
IP65 compact surface cabinets with opaque or transparent door.
IP40 flush-fit cabinets with opaque or transparent door.
Modular capacity for the whole range of products: 48 – 72 – 96 – 120 – 144 – 168 – 192.

Body, sides, top and bottom covers for surface cabinets and frames for flush-fit cabinets manufactured in cold-rolled steel EN10130+A1 with a thickness of 1,2 mm.
Body for flush-fit cabinets manufactured in galvanised steel with a thickness of 1,2 mm.
Opaque doors manufactured in cold-rolled steel EN10130+A1; 1-mm thick surface cabinets and 1,2-mm thick flush-fit cabinets and transparent doors manufactured in tinted 4-mm tempered safety glass.

IP30-IP40 combinable surface cabinets.
They are supplied disassembled in a single packaging that contains body, sides, top and bottom cover, cable entry cover and accessory bag.
The doors are supplied separately if requested, with both locks assembled and with accessory bag.
IP40-IP65 compact surface cabinets and IP40 flush-fit cabinets.
They are supplied assembled in individual packaging that contains the cabinet with the door and the locks assembled, and an accessory bag.
Lids and DIN rails, They can be ordered as a Kit: Lids + DIN rails.
Separately: modular or blind lids, as well as DIN rails plus assembly supports for surface cabinets (48013) or for flush-fit cabinets (48014)

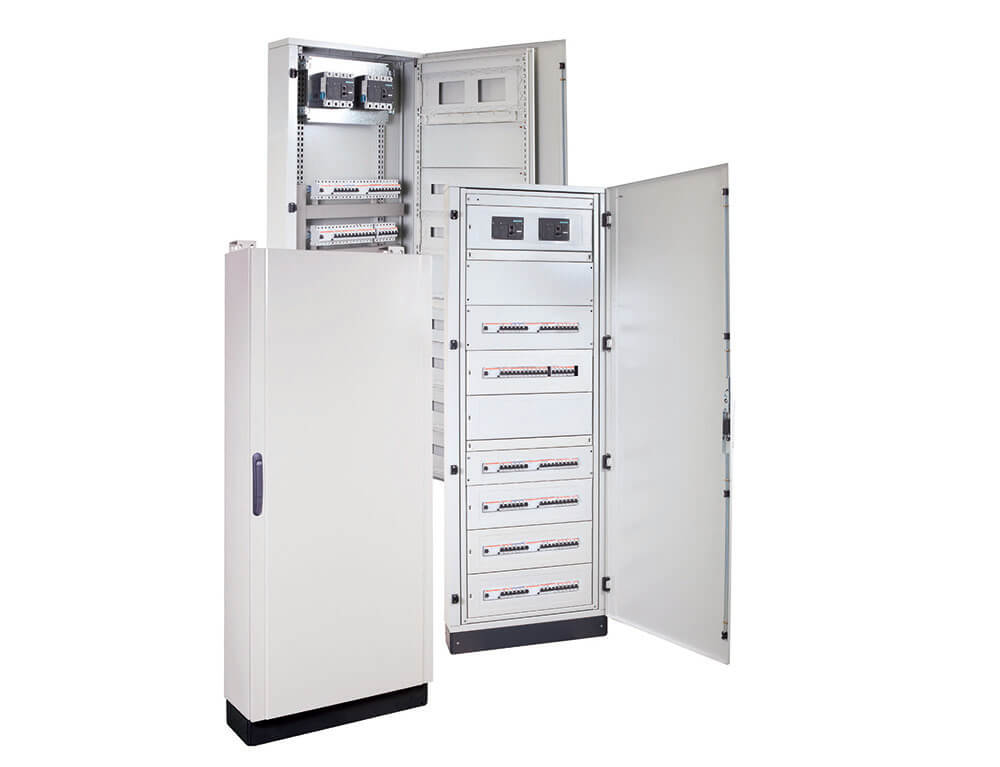

IP40 combinable surface cabinets with opaque or transparent door.
IP55 compact surface cabinets with opaque or transparent door.
Modular capacity for 1810 mm cabinets: from 192 to 240 modules.
Modular capacity for 2110 mm cabinets: from 216 to 288 modules.

Body, sides, and top and bottom covers made of 1,2-mm thick EN10130+A1 cold-rolled steel.
Opaque doors made of 1,2-mm thick EN10130+A1 cold-rolled steel.
Transparent doors made of 4-mm thick tempered safety glass.

IP40 combinable surface cabinets are supplied disassembled in a single packaging.
IP55 compact surface cabinets are supplied assembled in a single packaging
