Medium Voltage Insulated Busduct

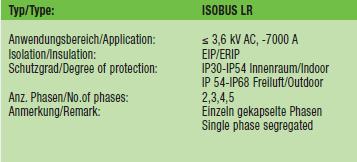

ISOBUS LR

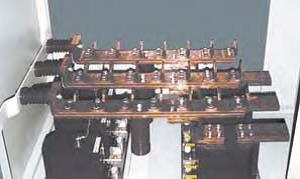

ISOBUS LR, an ERIP-insulated bus for low voltages, single-phase insulated, with a high degree of protection.

SPECIAL DESIGN

Special designs for switchgear in the medium voltage range are also available in small quantities or as individual models. We develop, design and produce tailor made solutions.

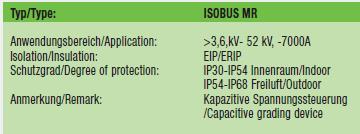

ISOBUS MR

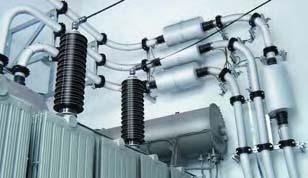

ISOBUS MR is a busbar system with cast resin insulation, manufactured using a vacuum impregnation process. Embedded control layers at the ends of the busbars ensure even voltage distribution. The earth layer is concentrically placed on the outside to ensure touch safety during operation.
Advantages:
– Space-saving design due to small bending radii
– No special structural measures required for buildings
– Any three-dimensional shape is possible
– Converted room can be smaller.

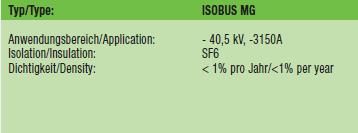

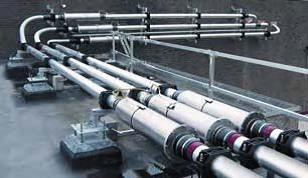

ISOBUS MG

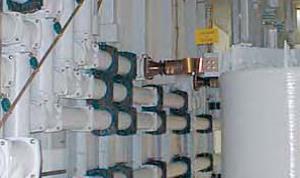

Isobus MG is a SF6 gas insulated busbar system for medium voltages. The inner conductors are copper tubes centered on insulators. An aluminium protective tube (colour coded to customer’s specifications) around the inner conductor guarantees contact security. Isobus MG can be supplied with all the usual and also special accessories.
Advantages:
– Connection to all types of switching installations
– Small space requirements
– No special structural measures required for buildings
– SF6 gas insulation technology also in combination with Isobus MR
– Cable connection technology can be provided.

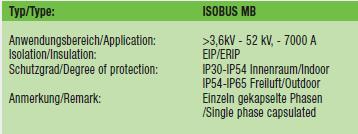

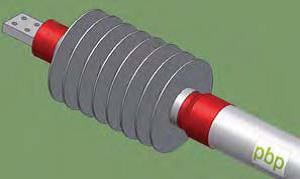

ISOBUS MB

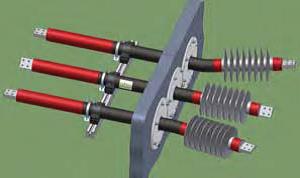

ISOBUS MB are ERIP insulated capacitor bushings with embedded control layers. Fixed flanges on the conductors are used for fastening the feed-throughs. This makes simple and fast installation possible. The earth layer of the feed-through is connected directly with the flange.

Applications:
– Indoor – indoor / outdoor
– Outdoor / outdoor – oil/air
– Possible in any geometric shape
– As end closure for tube gas bars ISOBUS MG
– Can be combined with cable connection technology
