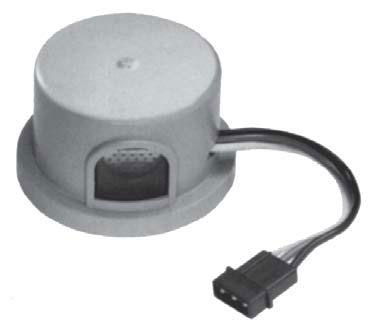

FPN 7840 – Series Shorting Caps, Open Caps

Locking-type caps that have the physical appearance of photoelectric controls and meet ANSI C136.10 mounting specifications for roadway lighting equipment but provide a normally closed contact (fixture always ON). All caps are rated for a maximum of 15 Amps FLA.

Application

Shorting caps are used on industrial, commercial, street and highway luminaries equipped with locking-type receptacles. Shorting caps save wiring time by providing a constant ON. Several luminaires wired to the same line breaker may be controlled from a central point using a contactor or relay, as well as weatherproof protection for the socket. Normally-Open caps (fixture always OFF) for temporary disabling of a lighting fixture are also available.

Specifications

Photocell:

Conformaly coated cadmium sulfide photocell

Switch Type:

SPST-NC (single-pole, single-throw, normally closed) electromagnetic relay.

Housing:

UV-resistant, high-impact, polypropylene with clear UV-stabilized window.

Base:

High temp ABS (3′ dia.)

Turn-On:

1 footcandle (fc).

Turn-On:Turn-Off ratio:

1:5

Rated Life:

5,000 operations minimum at rated load.

Temperature Range:

– 40º to + 70ºC

– 40º to + 158ºF

Dimensions:

3.25″ Dia.; 2.0″ H.
