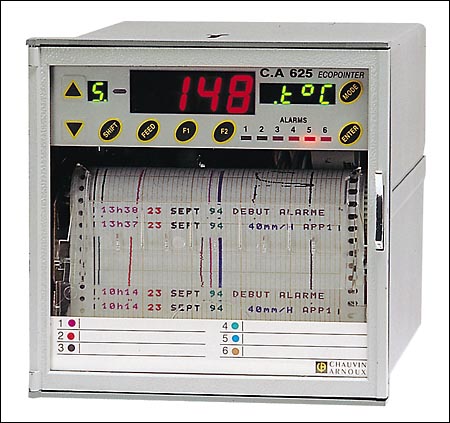

ECOPOINTER C.A 625

6 or 12-channel models and two DIN formats

Programmable recorders with 6 or 12 analogue inputs and 4 logic inputs. Plotted by dots. 6 colours.
6-channel model: 2 DIN formats, 144x144mm or 192x144mm.
12-channel model: DIN format, 192x144mm.

• Programmable analogue inputs: J, K, T, S, R, N and B thermocouples, mV, mA, Pt100 probes, or potentiometer.
• Intelligent chart: 100mm or 150mm depending on format
• Adjustable chart speed: 1 to1000mm/h
• Roll or fan-fold chart
• 12 incorporated alarms
• Configuration on front panel
• Numerous output options: relay, logic, analogue, digital
• Depth: 200mm
