Statop 24 Series
-

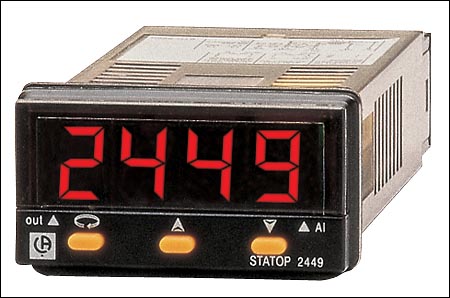

Statop 2449
Leakproof IP 65 front panel – Universal input 24x48mm digital controllers.
1 regulation channel and 1 alarm or 2 “hot/cold” regulation channels without alarm.
Ramp, guarantee of temperature and timer functions.- Easy and safe to use by PID self-adjustment and fuzzy logic
- Universal input: configurable for thermocouples (J, K, T, E, B, R, S or N) or for Pt100 probes (2 or 3-wire), analogue voltage or current
- 10000-count display. Two LEDs: 1 alarm and 1 regulation LED
- Regulation output: relay, logic voltage or analogue current 4…20mA
- Configurable alarm output available as an option
- RS 485 digital transmission available as an option
- Power supply 90 to 260VAC. On request: 20 to 32VAC/DCTo download the COMM4851 software, you must first log in. Caution: 5580KB file!
Family code STATOP 2449
- Family: ST2449 4513
- Output:
– 10 relays
– 20 logic voltage
– 30 analogue (4…20mA) - Alarm: 0 without – 1 relay
- RS485 transmission:
0 without – 1 with
-

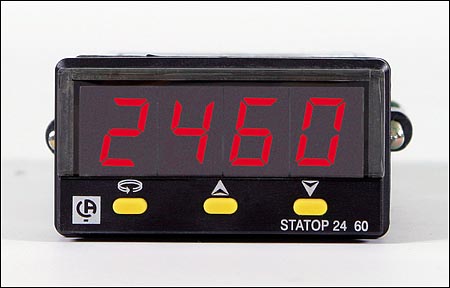

Statop 2460
Specially designed for thermal processes
24x48mm Digital controllers (1/32 DIN)
1 control channel and 2 alarms or two “hot-cold” control channels and one alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.- IP65 front-panel protection
- Configurable universal input: for thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes or analogue voltage or analogue current
- Programmable process input: analogue piloting of control setting
- Logic input: to commute a control setting
- 2 x 10,000-count display, measurement in red and setting in green
- Control output: relay or logic voltage or analogue 4…20mA, 0…10V
- Configurable alarm output
- RS 485 digital transmission optional
- 90 to 260VAC power supply
-

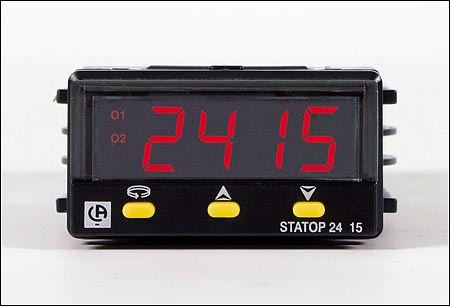

Statop 2415
24x48mm Digital controllers (1/32 DIN)
1 control channel and 1 alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.- IP65 front-panel protection
- Configurable temperature input: thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes
- 10,000-count display
- Control output: relay or logic voltage or analogue 4…20mA, 0…10V
- Configurable alarm output optional
- RS 485 digital transmission optional
- 90 to 260VAC power supply
