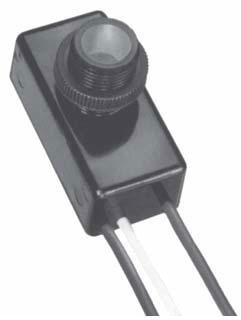

Flush-Mount Controls

The FA Series wire-in flush-mount photocontrols provide superior performance for internal mounting requirements. All Series FA controls utilize a rugged, SPST bimetallic switch. Durable, polycarbonate housing with a clear UV-stabilized window ultrasonically welded in place to prevent moisture ingress.

Application

The FA Series are compact, flush-mounted, high temperature resistant controls designed for industrial, commercial, and decorative lighting fixtures. The versatility and reliability of these controls allow them to be used as replacement units in a wide range of outdoor lighting fixtures.

Specifications

Photocell:

Cadmium sulfide (CdS)

Switch Type:

SPST-NC (single-pole, single-throw, normally closed) bimetallic switch.

Housing:

UV-resistant polycarbonate. (Black)

Window:

Clear, UV-stabilized

Nipple:

3/8″ – 18 thread; 3/4″ long; fits 3/8″ knockout; 11/16″ opening.

Leads:

18″ long, color coded. 105ºC wire, 1/2″

Turn-On:

1 to 4 footcandles (fc).

Turn-Off:

3 to 12 footcandles (fc).

Time Delay:

30 seconds, minimum.

Rated Life:

5,000 operations minimum at rated load.

Temperature Range:

– 40º to +60ºC

– 40º to +140ºF

Dimensions:

2.062″L; 1.00″W; 1.53″D
