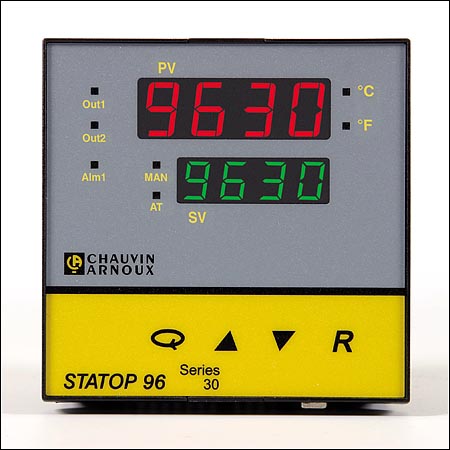

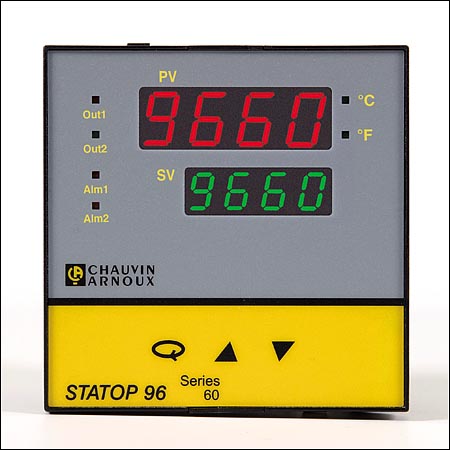

Statop 96-30

96x96mm Digital controllers (1/4 DIN)
1 control channel and 1 alarm or 2 “hot-cold” control channels without alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.

• IP50 front-panel protection
• Configurable temperature input: thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes
• 2 x 10,000-count display, measurement in red and setting in green
• Control output: relay or logic voltage or analogue 4…20mA, 0…10V
• Configurable alarm output optional
• RS 485 digital transmission optional
• 90 to 260VAC power supply

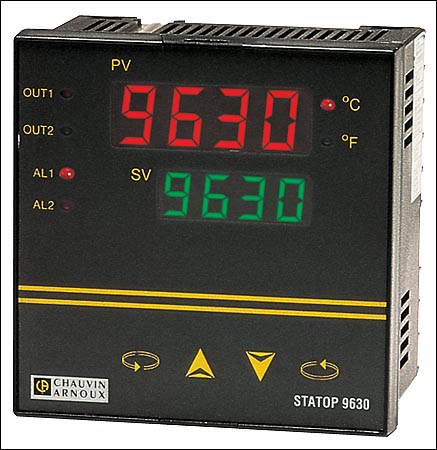

Statop 9620 / 9630

Multi-sensor input 96x96mm digital controllers.
Ramp, temperature guarantee and timer functions.
STATOP 9620: 1 regulation and 2 alarm channels
STATOP 9630: 2 “hot/cold” regulation channels and 2 alarms.

• Easy and safe to use by PID self-adjustment and fuzzy logic
• Multi-sensor input: configurable for thermocouples (J, K, T, E, B, R, S or N) or for Pt100 probes (2 or 3-wire)
• Twin 10,000-count display: measurement in red and set point in green. Five (or six) LEDS: 1 (or 2) regulation LEDs, 2 alarm LEDs and 2 °C or °F unit LEDS
• Regulation outputs: relay, logic or analogue current
• Configurable alarm outputs on relays
• RS 485 digital transmission available as an option
• Power supply 90 to 260VAC. On request: 20 to 32VAC/DC

Family codes STATOP 9620 and STATOP 9630

• Family: ST9620 4513
• Family: ST9630 4513
• Output: 10 relay – 20 logic voltage – 30 analogue (4…20mA)
• Alarm: 00 without – 20 with 2 alarms

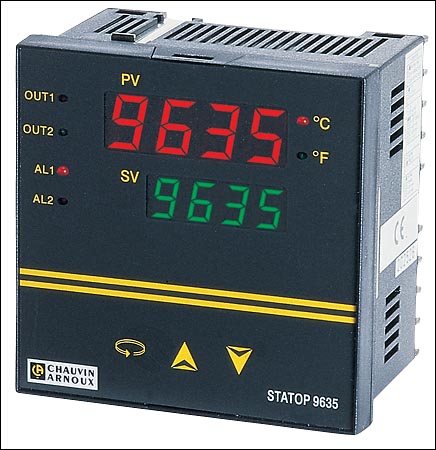

Statop 9625 / 9635

COMM 4851 software for exchanging digital data

Universal input Digital controllers 96 x 96mm.
Ramp functions, temperature guarantee, timer.
STATOP 9625: 1 control channel and 2 alarms or 2 control channels “hot-cold” and 1 alarm
STATOP 9635: 2 control channels “hot-cold” and 2 alarms

•   Simple and safe to use with “PID” system adjustment and fuzzy logic
•   Universal input: configurable with thermocouples (J, K, T, E, B, R, S, N) or Pt100 sensors (2 or 3 wire) or analogue voltage or analogue current
•   Double 10,0000-count display: the measurement in red and the setpoint value in green. 5 (or 6) LEDs: 1 (or 2) control indicator, 2 alarm LEDs and 2 LEDs for °C or °F units
•   Control outputs: relay, logic or analogue (current or voltage)
•   Configurable alarm outputs, on relay
•   RS 485 digital link, optional
•   Power supply: 90 to 260VAC. Upon request: 20 to 32VAC/DCFamily codes STATOP 9625 and STATOP 9635

• Family: ST9625 4513
• Family: ST9635 4513
• Output 1: 1 relay – 2 logic voltage – 3 analogue (4…20mA) – 4 analogue (0…20mA) – 5 analogue (0…10V)
• Output 2 : 0 without – 1 relay
• Alarm: 0 without – 2 relay
• RS485 transmission : 0 without – 1 with

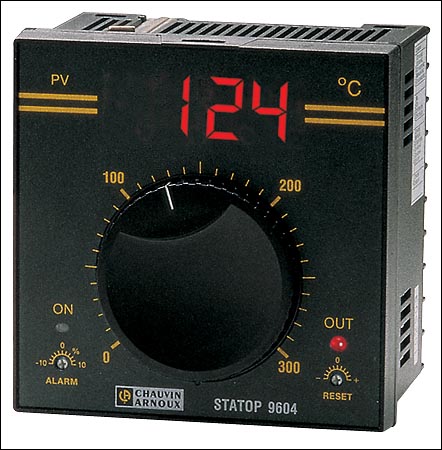

Statop 9601 / 9604 – Statop 4 / NB

96x96mm analogue controllers
STATOP 9601: 1 regulation channel and 1 output LED.
STATOP 9604: 1 regulation channel and 1 alarm (available as an option), equipped with a 2,000-count digital display.
STATOP 4: 1 regulation channel and 1 alarm (available as an option).
STATOP NB: 1 regulation channel and 1 alarm (available as an option), equipped with a 1,000-count digital display.

• Easy and safe to use
• Derived Proportional or On-Off regulation
• Input for J or K thermocouples or for Pt100 probes (2 or 3 wire)
• Regulation output by changeover relay
• Alarm output on relay
• Power supply 115 to 230VAC
