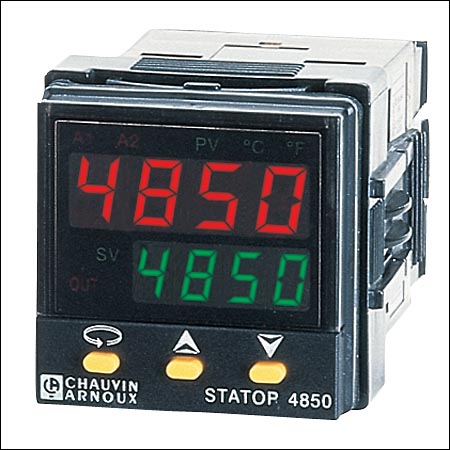

Statop 4850

COMM 4851 digital data exchange software

Leakproof IP 65 front panel – Universal input 48x48mm digital controllers.
1 regulation channel and 2 alarms or 2 “hot/cold” regulation channels and 1 alarm.
Ramp, temperature guarantee and timer functions.

• Easy and safe to use with PID self-adjustment and fuzzy logic
• Universal input: configurable for thermocouples (J, K, T, E, B, R, S or N) or for Pt100 probes (2 or 3-wire), analogue voltage or current
• 10000-count twin display: measurement in red and set point in green. Five LEDS: 1 regulation LED, 2 alarm LEDs and 2 °C or °F unit LEDS
• Regulation outputs: relay or logic (voltage) or analogue (current or voltage)
• Configurable alarm output available on relays
• RS 485 digital transmission available as an option
• Power supply 90 to 260VAC. On request: 20 to 32VAC/DC

Family code STATOP 4850

• Family: ST4850 4513
• Output 1: 1 relay – 2 logic voltage. – 3 analogue (4…20mA)
• Output 2: 0 without – 1 relay
• Alarm: 0 without – 1 relay
• RS485 transmission: 0 without – 1 with

Statop 4849

Multi-sensor input 48x48mm digital controllers.
1 regulation channel and 1 alarm, available as an option.
Ramp functions, guarantee of temperature and timer.

• Easy and safe to use by PID self-adjustment and fuzzy logic
• Multi-sensor input: configurable for thermocouples (J, K, T, E, B, R, S or N) or for Pt100 probes (2 or 3-wire)
  On request: linear voltage input (-10 to + 60 mV)
• Twin, 10000-count display: measurement in red and set point in green. Two LEDs: 1 red alarm and 1 green regulation LED
• Regulation output: relay or logic or analogue voltage
• Configurable alarm output on relay
• Power supply 90 to 260VAC. On request: 20 to 32VAC/DC

Family code STATOP 4849

• Family: ST4849
• Power supply: (90/260) 90 to 260VAC
• Output: (REL) relay – (LOG) logic – (4/20)
  analogue 4…20mA
• Alarm: (AL) with alarm

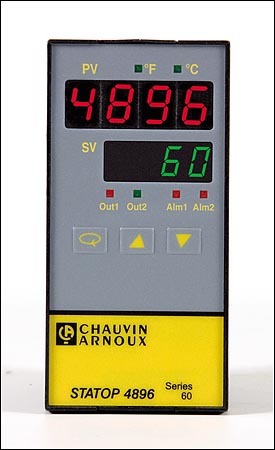

Statop 4896-60

Specially designed for thermal processes

48x96mm Digital controllers (1/8 DIN)
1 control channel and 2 alarms or two “hot-cold” control channels and one alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.

• IP50 front-panel protection
• Configurable universal input: for thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes or analogue voltage or analogue current
• Programmable process input: analogue piloting of control setting
• Logic input: to commute a control setting
• 2 x 10,000-count display, measurement in red and setting in green
• Control output: relay or logic voltage or analogue 4…20mA, 0…10V
• Configurable alarm output
• RS 485 digital transmission optional
• 90 to 260VAC power supply

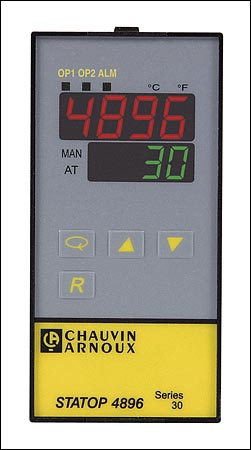

Statop 4896-30

48x96mm digital controllers (1/8 DIN)
1 control channel and 1 alarm or 2 “hot-cold” control channels without alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.

• IP50 front panel protection
• Configurable temperature input: thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes
• 2 x 10,000-count display, measurement in red and setting in green
• Control output: relay or logic voltage or analogue 4…20mA, 0…10V
• Configurable alarm output optional
• RS 485 digital transmission optional
• 90 to 260VAC power supply

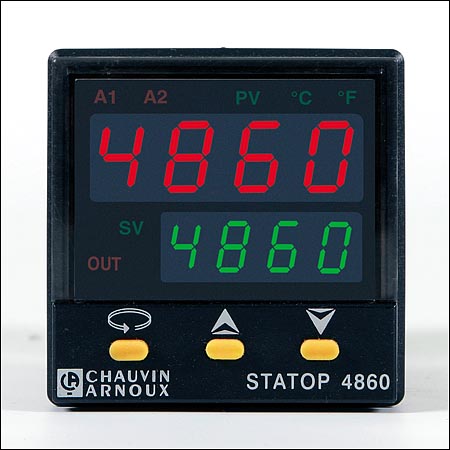

Statop 48-60

Specially designed for thermal processes

48x48mm Digital controllers (1/16 DIN)
1 control channel and 2 alarms or two “hot-cold” control channels and one alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.

• IP65 front panel protection
• Configurable universal input: for thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes or analogue voltage or analogue current
• Programmable process input: analogue piloting of control setting
• Logic input: to commute a control setting
• 2 x 10,000-count display, measurement in red and setting in green
• Control output: relay or logic voltage or analogue 4…20mA, 0…10V
• Configurable alarm output
• RS 485 digital transmission optional
• 90 to 260VAC power supply

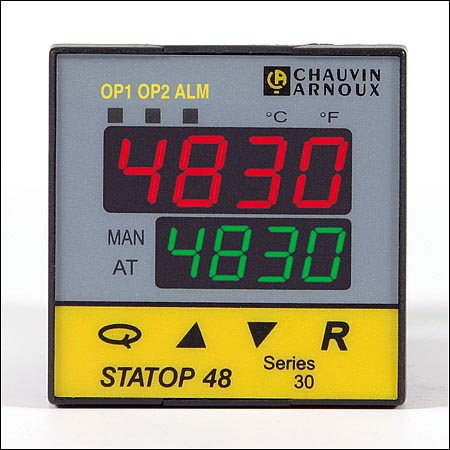

Statop 4830

48x48mm Digital controllers (1/16 DIN)
1 control channel and 1 alarm or 2 hot-cold control channels without alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.

• IP50 front panel protection
• Configurable temperature input: thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes
• 2 x 10,000-count display, measurement in red and setting in green
• Control output: relay or logic voltage or analogue 4…20mA, 0…10V
• Configurable alarm output optional
• RS 485 digital transmission optional
• 90 to 260VAC power supply

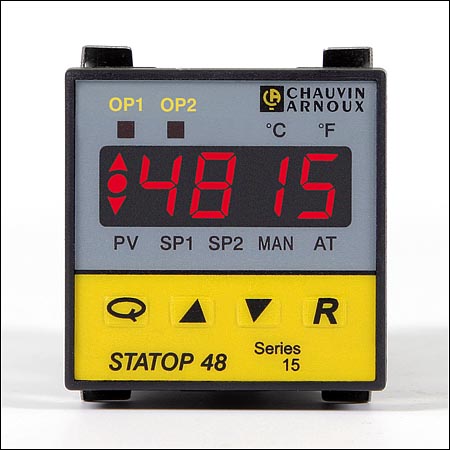

Statop 4815

48x48mm digital controllers (1/16 DIN)
1 control channel and 1 alarm. Temperature ramp and timer functions. Easy and safe to use with auto-adjusting PID and fuzzy logic.

• IP30 front panel protection
• Configurable temperature input: thermocouples (J, K, T, E, B, R, S, N or L) or Pt100 Ω probes
• 10,000-count display
• Control output: relay or logic voltage or analogue 4…20mA, 0…10V
• Configurable alarm output optional
• RS 485 digital transmission optional
• 90 to 260VAC power supply

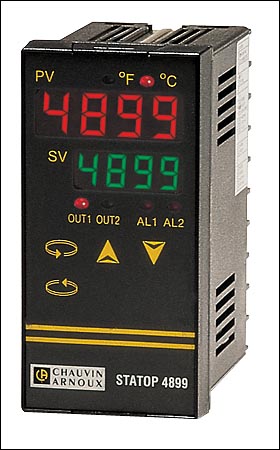

Statop 4897 / 4899

COMM 4851 digital data exchange software

Multi-sensor input 48x96mm digital controllers.

Ramp, temperature guarantee and timer functions.
STATOP 4897: 1 regulation and 2 alarm channels
STATOP 4899: 2 “hot/cold” regulation channels and 2 alarms.

• Easy and safe to use by PID self-adjustment and fuzzy logic
• Multi-sensor input: configurable for thermocouples (J, K, T, E, B, R, S or N) or for Pt100 probes (2 or 3-wire)
• Twin 10,000-count display: measurement in red and set point in green. Five (or six) LEDS: 1 (or 2) regulation LED(s), 2 alarm LEDs and 2 °C or °F unit LEDs
• Control outputs: relay, logic or analogue current
• Configurable alarm outputs on relays
• RS 485 digital transmission available as an option
• Power supply 90 to 260VAC. On request: 20 to 32VAC/DC

Family codes STATOP 4897 and STATOP 4899

• Family: ST4897 4513
• Family: ST4897 4513
• Output: 10 relay – 20 logic voltage – 30 analogue (4…20mA)
• Alarm: 00 without -20 with 2 alarms
