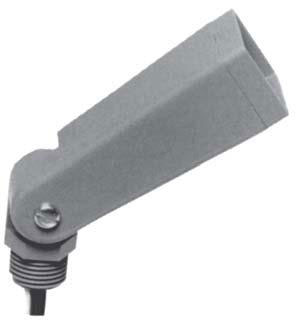

Swivel Directional Control

The compact, all weather construction of the FL Series photocontrol provides the ultimate in application flexibility. Its small size and swivel head allow placement and positioning for mounting where space is at a premium. The 1/2″ threaded nipple mounts easily in a 1/2″ conduit knockout.

Application

The FL Series compact, directional, conduitmounted controls are designed for perimeter and building security lighting, PAR lamps and decorative porch lighting. Ideal for use under awnings, porch roofs – wherever reflective lighting is a problem.

Specifications

Photocell:

Cadmium sulfide (CdS).

Switch Type:

SPST-NC (single-pole, single-throw, normally closed) bimetallic switch.

Housing:

Polycarbonate. (Gray)

Nipple:

1/2″– 14 thread; 5/8″ long; fits 1/2″

Leads:

Color coded 15″ standard.

Turn-On:

1 to 5 footcandles (fc).

Turn-Off:

3 to 15 footcandles (fc).

Time Delay:

30 seconds minimum.

Rated Life:

5,000 operations minimum at rated load.

Temperature Range:

– 40º to + 65ºC

– 40º to + 150ºF

Dimensions:

4.00″L; 1.5″W; 1.75″D
