Plastic Enclosure & Boxes
-
IP 67 Industrial Sockets Boxes
Product range
Surface enclosures with a capacity of 9, 13 and 26 modules with transparent window.Materials
Halogen-free plastic materials.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.Supply
Supplied in individual cardboard packaging.
When several items are sent together, they are bundled together with transparent film.
The enclosure is supplied with the windows assembled on the cover and the hinges attached to the base, leaving the cover totally free for handling by the installer.
The rails are supplied assembled to the base for the 9-module models.

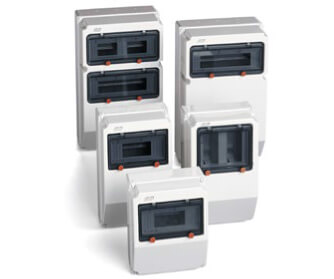

For the 13- and 26-module models they are supplied disassembled in a bag containing the rail, supports and screwsIP 65 Industrial Sockets Boxes
Product range
Surface enclosures with a capacity of 4, 6, 8, 12, 18 and 24 modules with transparent window.Materials
Halogen-free plastic materials.
Body: ABS RAL 7035.
Transparent window: PC tinted window, with UV protection.Supply
Supplied in individual cardboard packaging.
When several items are sent together, they are bundled together with transparent film.
The enclosure is supplied with the windows assembled on the cover and the hinges attached to the base, leaving the cover totally free for handling by the installer.
The rails are supplied assembled in all referencesIP 65 Distribution Boxes
Product range
Surface enclosures with a capacity of 4, 6, 8, 12, 18, 24, 36 and 54 modules with transparent window.Materials
ABS version, Halogen-free plastic materials.
Base and frame: ABS RAL 7035 grey.
Transparent window: PC tinted window, with UV protection.
Polycarbonate version, Halogen-free plastic materials.
Base and frame: PC RAL 7035 grey.
Transparent window: PC tinted window, with UV protection (Recommended for outdoor use: UV protection according to the ISO 4892-2 standard, method A: 1000 h).Supply
Supplied in individual packaging.
When several items are sent together, they are bundled together with transparent film.

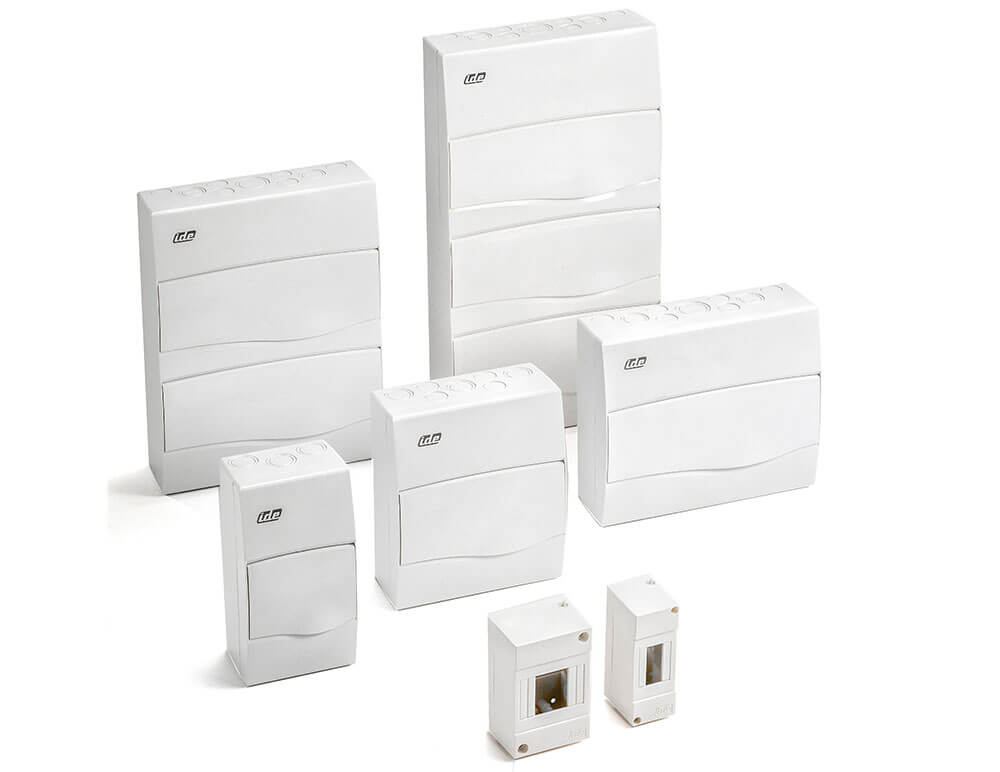

TH35x7,5 symmetrical rail in enclosures with one row of modules and a compact frame in enclosures with two or more rows of modules. They are supplied assembled in all referencesIP 40 Surface Distribution Boxes
Product range
Terminal boxes with a capacity of 2 and 4 modules.
Surface boxes with a capacity of 4, 8, 12, 24 and 36 modules with transparent window.Materials
Halogen-free plastic materials.
Base, frame and window: ABS RAL 9003 white.Supply
Supplied in individual packaging.
When several items are sent together, they are bundled together with transparent film.

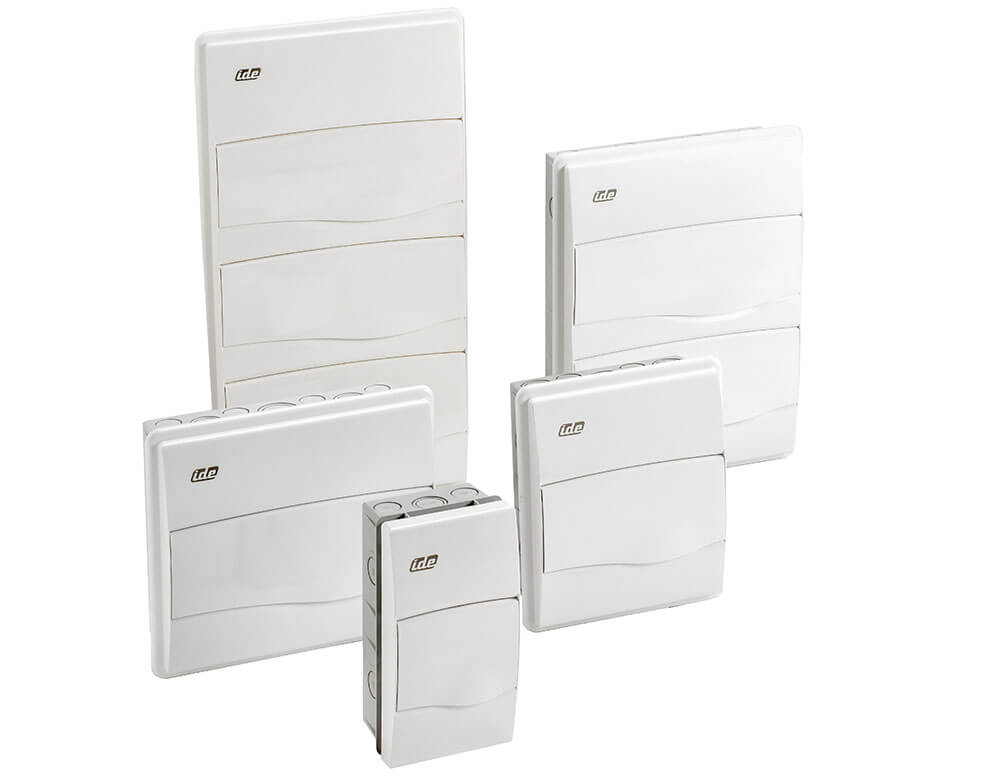

They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.IP 40 Flush-Fit Distribution Boxes
Product range
Flush-fit boxes with a capacity of 4, 8, 12, 24 and 36 modules with opaque window.Materials
Halogen-free plastic materials.
Base, frame and window: ABS RAL 9003 white.Supply
Supplied in individual packaging.
When several items are sent together, they are bundled together with transparent film.

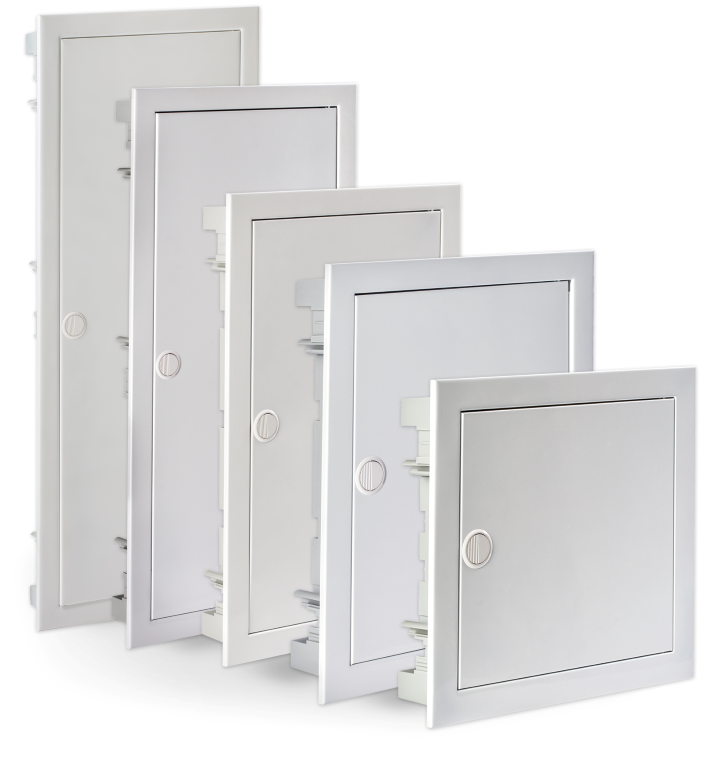

They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.IP 40 Flush-Fit Distribution Boxes With Steel Door
Product range
Flush-fit boxes for conventional walls with a capacity of 14, 28, 42, 56 and 70 modules,with steel door.
Flush-fit boxes for hollow walls (V0 version) with a capacity of 14, 28, 42, 56 and 70 modules,with steel door.Materials
Frame and opaque window: RAL 9003 white metal sheet steel.
RAL 9003 white plastic base.Supply
Supplied in a single box per packaging multiple.

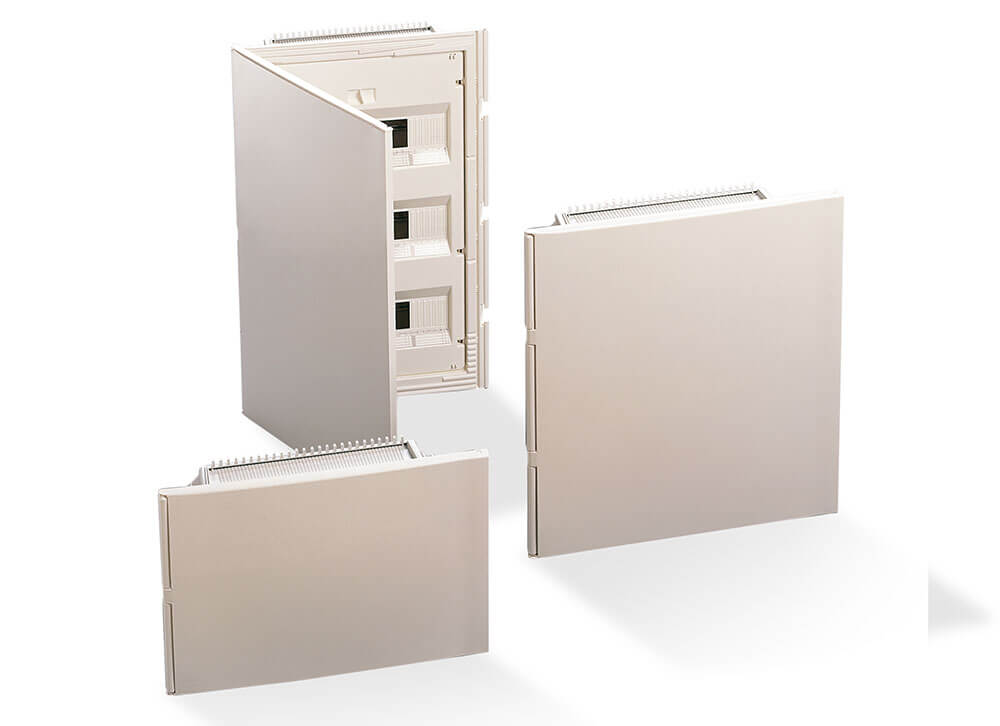

IP 30 Flush-Fit Distribution Boxes for Hollow Walls
Product range
14, 28 and 42-module flush-fit enclosures with opaque window.
Version for hollow walls (30PH type).
Version for conventional walls (30EM type).Materials
Halogen-free plastic materials.
Frame and opaque window: ABS RAL 9003 white.
Base: PS RAL 7035 grey.Supply
Supplied in individual packaging.
When several items are sent together, they are bundled together with transparent film.

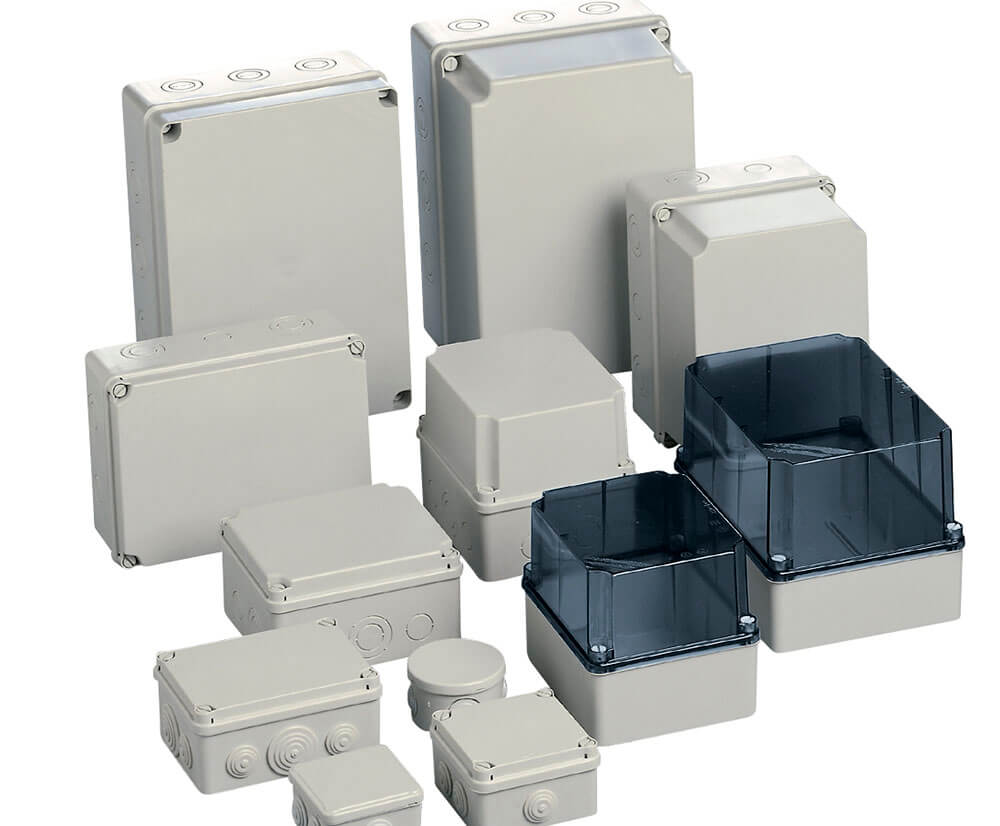

They are supplied with all the elements assembled, except for the ones supplied in the accessory bag.IP 66-IP 67 Junction Boxes
Product range
Seven watertight junction boxes. Three watertight motor-protection boxes.
Each of these models is manufactured in three different versions: With conical cable glands.
With knock-out sides, With plain sides.
The three largest models are available with opaque or transparent cover.
A series of assemblies with standard power sockets is offered.Materials
Halogen-free plastic materials.
Opaque base and cover: Shock-proof PS RAL 7035.
Transparent cover: PC tinted window, with UV protection.
Conical cable glands: rubber.Supply
The boxes are supplied individually, shrink-wrapped and in multiple cardboard packaging, according to minimum packaging units.

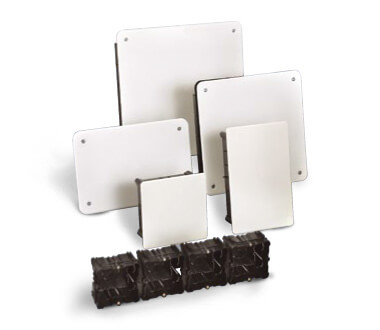

Boxes with conical cable glands are supplied with the cone assembledMechanical and Junction Boxes
Product range
Enclosure for 60-mm mechanisms (Ref D88).
Ten junction box models consisting of base and blanking cover.
With possibility of metal screw and plastic claw (depending on models).Materials
Halogen-free plastic materials.
Mechanisms: D88: Black PS.
Junction boxes: Base: Black PS.
Cover: PS RAL 9003 white.
D70-D100: Self-extinguishing PVC RAL 9003 white.Supply
The boxes are supplied individually, shrink-wrapped and in multiple cardboard packaging, according to minimum packaging units. The D88 boxes are supplied on pallets.

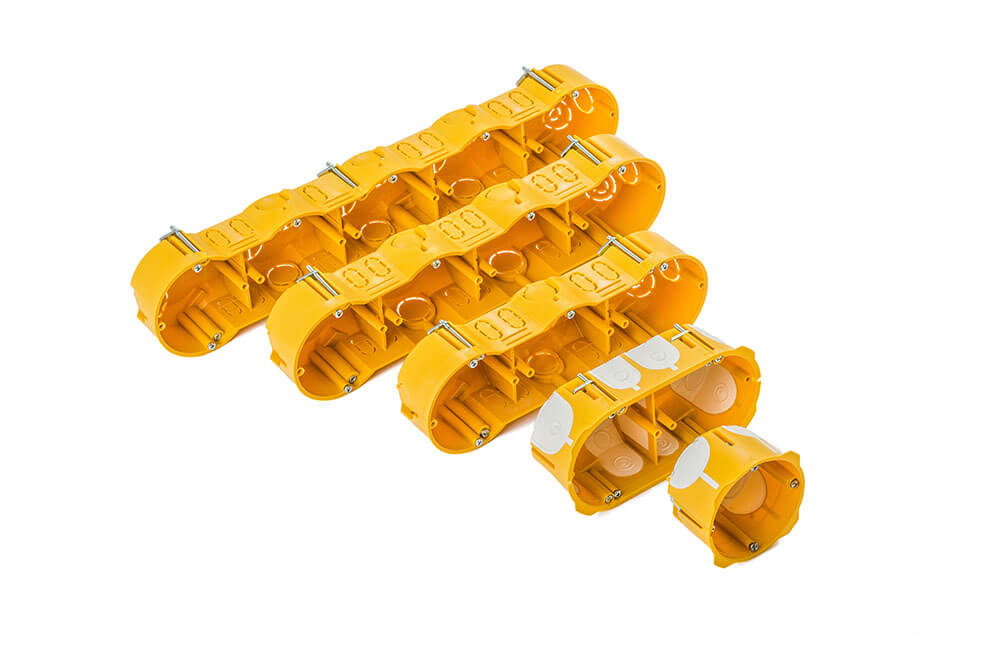

Minimum amount of 7680 pieces per order. Their storage system permits 20% space saving.Mechanical and Junction Boxes for Hollow Walls
Product range
5 models for mechanism boxes of 1, 2, 3, 4 and 5 crowns.
3 models for junction boxes.Materials
Self-extinguishing PVC (lead-free).
Colour: yellow base.
RAL 9003 white cover.Supply
Supplied in boxes per packaging multiple.
D70-type boxes include: Screws for mounting in hollow walls already mounted.
Partition (except reference D70/1K).
CT-type boxes include: Screw-on cover and screws for hollow wall-mounting, included in bag.
CT115/K reference includes a partition.
CT217/K reference is supplied with the screws assembled.
IP 20 Boxes for Electrical Components
Product range
Boxes with the distance between screws for fixing switches according the standard measurement of the so-called American system.Materials
Halogen-free plastic materials.
ABS RAL 7035 grey.Supply
Supplied in boxes per multiple packaging.
IP 40-IP 55 Surface Boxes and Mechanism
Product range
Wall-mounted enclosures and mechanism IP40 – IP55Materials
Halogen-free plastic materials.
ABS RAL 7035 grey.Supply
Enclosures: Supplied in boxes per multiple packaging.
Mechanisms: Supplied in individual packaging.
