Renewable Energy
-
Low PV Voltage Range: Renewable Power Converters
Operating Characteristics
- Rated Field Voltage (V in) : 490VDC
- Field Voltage Variation : 325VDC – 665VDC
- Max Field Voltage : 700VDC
- Rated Current (I in) :
- RECon 30L (from 225A up to 900A)
- RECon 60L (from 450A up to 1800A)
- Maximum Current :
- RECon 30L (325A up to 1300A)
- RECon 60L (from 650A up to 2600A)
- Number of Independent MPPT : 1 / 2 / 3 / 4
- Rated Power (P out) :
- RECon 30L (from 100kVA up to 400kVA)
- RECon 60L (from 200kVA up to 800kVA)
- Max Power (P max) :
- RECon 30L (from 110kVA up to 440kVA)
- RECon 60L (from 220kVA up to 880kVA)
Ranges
- RECon 30L Line : 100, 100-T, 200, 200-T, 300, 300-T, 400, 400-T
- RECon 60L Line : 200, 200-T, 400, 400-T, 600, 600-T, 800, 800-T
* Notes 1: L = Low PV Voltage Range , -T = LV/LV Grid Transformer Integrated

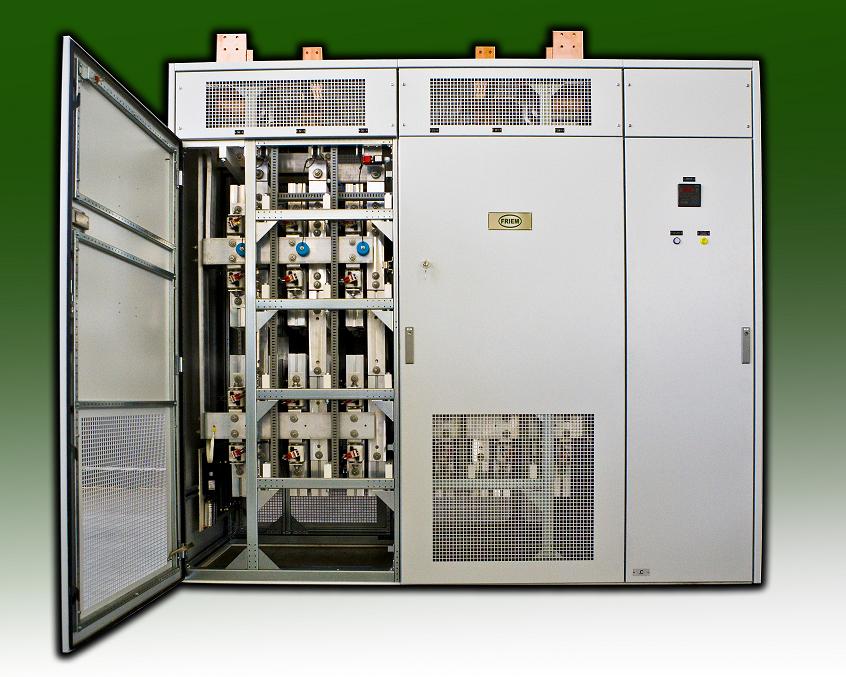

* Notes 2: Picture is RECon 30L 100-150
Applications- Wind Generator
- Photovoltoic Plants
Brochure & Catalog
-
High PV Voltage Range: Renewable Energy Converters
Operating Characteristics
- Rated Field Voltage (V in) : 650VDC
- Field Voltage Variation : 470VDC – 850VDC
- Max Field Voltage : 900VDC
- Rated Current (I in) :
- RECon 30H (from 150A up to 900A)
- RECon 60H (from 450A up to 1800A)
- Maximum Current :
- RECon 30H (325A up to 1300A)
- RECon 60H (from 650A up to 2600A)
- Number of Independent MPPT : 1 / 2 / 3 / 4
- Rated Power (P Out) :
- RECon 30H (from 100kVA up to 600kVA)
- RECon 60H (from 300kVA up to 1200kVA)
- Max Power (P Max) :
- RECon 30H (from 165kVA up to 660kVA)
- RECon 60H (from 330kVA up to 1320kVA)
* Notes 1: H = High PV Voltage Range , -T = LV/LV Grid Transformer Integrated
* Notes 2: Picture is RECon 30H 100-150
Range
- RECon 30H Line : 150, 150-T, 300, 300-T, 450, 450-T, 600, 600-T
- RECon 60H Line : 300, 300-T, 600, 600-T, 900, 900-T, 1200, 1200-T
Applications
- Wind Generator
- Photovoltoic Plants
Brochure & Catalog
-
Inverter
The RECon Line concept is derived from the long experience FRIEM has achieved in Power Conversion and in the use of all kind of semicondutors.The Line has been developed following FRIEM’s traditional concepts of reliability, efficiency and modularity devoted to high flexibility and easy maintenance.All the different models of the RECon Line can be either used as single units or combined in parallel configuration to reach the requested power.Besides the most advanced and flexible Output Power Regulation and the highest Conversion Efficiency, the RECon Line Inverters also offer:• Modular draw-out and Compact Design for configuration flexibility, space saving and fast installation.• Parallel Modules or Independent Modules Configurations.• Easy Maintenance thanks to the completely withdrawable Power Section.• The Digital Regulator FRIEM DRP-6Ph Type allows the fully automated Control and Protection of the Inverter itself and offers the availability of:- Single or Multiple MPPT management.
- Real Time and Recorded Measurements.
- Event Recording, Load Profile and Oscyllography.
- Internal Canbus Communication Protocol for I/O management (temperature, irradiation and wind speed sensors).
- Programmable Output Relays, Digital Inputs and Outputs.
- Comprehensive self diagnostic – not just memory checksums – periodically tests the entire regulator.
• A Touch Screen Operator Panel for easy access to Measurements and Setting Parameters of One or More Inverters and of the PV Field, equipped with:- Front Face USB Serial Comm. Port for Local Interface.
- Second Serial RS485 Comm. Port.
- RS232/Modem Comm. Port.
- Ethernet Serial Comm. Port.
• Standard Modbus-RTU or Profibus-DP communication protocols.• Conformance to IEC Standards and CE Directive; UL-CSA approved.• ISO 9001 Certified Quality System. -

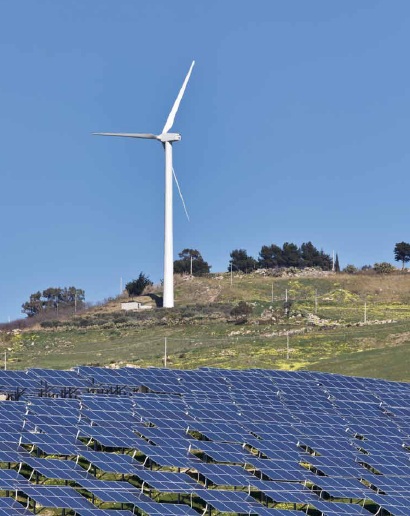

Solar & Wind Fan
FRIEM has developed a complete line of High Power Solar and Wind Inverters.The RECon Line concept is derived from the long experience FRIEM has achieved in Power Conversion and in the use of all kind of semiconductors.The Line has been developed following FRIEM’s traditional concept of reliability, efficiency and modularity devoted to high flexibility and easy maintenance.The different models of RECon Line Inverters are available in three main versions:RECon-xxx: Three-phase Inverter for LV/MV applications with external transformer.RECon-xxx-T: Three-phase Inverter grid connected with LV/LV integrated transformer.RECon S: Three-phase string Inverter for L.V. connection. All the different models of the RECon Line can be either used as single units or combined in parallel to reach the requested power.For full product catalog, Please refer to link below
